High technology irregular shape 55 inch 1.7mm narrow bezel lcd video wall
1. Irregular & Regular Splicing Mode
Support horizontal screen, vertical screen, LCD screens of different sizes for irregular splicing at the same time
A. Irregular Splicing Mode:

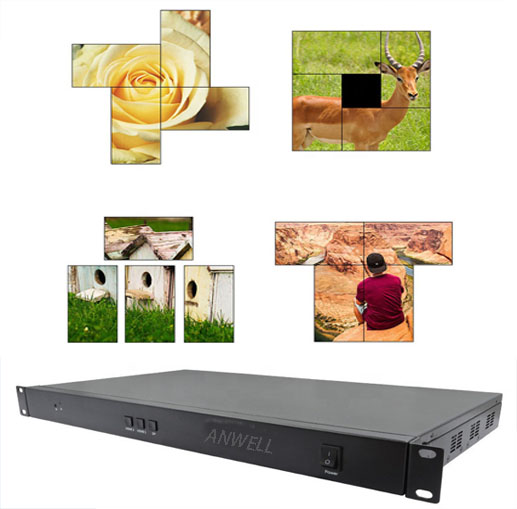

The LCD screens of the same or different sizes can be placed horizontally or vertically, and spliced into a personalized complete picture by professional debugging software. The following figure shows some examples of the stitching effect picture.
B. Regular Splicing Mode:
In addition to profile stitching, it also supports fast regular stitching settings, such as the commonly used 2x2 (also support customized 1x3, 1x4, 2x2, 2x1, 3x1, 4x1, 3x3, 3x4...) Some of which are as follows:
2. 4 HDMI outputs for 4 displays
Customized 1 to 4 picture stitching, Support 4 channels of HDMI 1.3 signal output, and with stero audio output, output resolution 1920x1080@60Hz.
Any output ports can be set to perform 90 degree, 180 degree, 270 degree flip function
3. Edge Shileding Function
4. Image Cutting Function
5. Control Software Page
Visualized shaped stitching control software for easy operation and debugging
Technical Specification:
| Size | 46 inch | 49 inch | 55 inch |
| Panel | 46" LCD module Screen | 49" LCD module Screen | 55" LCD module Screen |
| Backlight Type | LED | LED | LED |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Max Resolution | 1920X1080 or 3840X2160 | 1920X1080 or 3840X2160 | 1920X1080 or 3840X2160 |
| Color | 8Bit,16.7M | 8Bit,16.7M | 8Bit,16.7M |
| Brightness | 500cd/m2,700cd/m2 | 450cd/m2 | 500cd/m2,700cd/m2 |
| Contrast | 3500:01:00 | 4000:01:00 | 4500:01:00 |
| Visual Angle (H/V) | 178°/178° | 178°/178° | 178°/178° |
| Response Time | 8 ms | 8 ms | 8 ms |
| Life Span | >60,000 hours | >60,000 hours | >60,000 hours |
| Bezel width(between screens) | 1.7mm/1.8mm/3.5mm | 1.7mm/1.8mm/3.5mm | 1.7mm/1.8mm/3.5mm |
| Interfaces (option 1- without 4K input) |
| Input | 1*DVI,1*HD-MI,1*VGA,2*BNC (PAL/NTSC),1*RS232(RJ45) |
| Output | 2*RS232(RJ45),2*BNC (PAL/NTSC) |
| Interfaces (option 2- With 4K input) |
| Input | 1*DVI,1*HDMI,1* DP (Display port),1*VGA (SVGA / XGA / WXGA),2*RS232(RJ45) |
| Output | 1* DP (Display port),2*RS232(RJ45) |
| Power |
| Power Supply | AC100V~240V 50/60Hz |
| Maximum Power Consumption | 180W | 200W | 220W |
| Working Environment |
| WorkingTemperature | 0ºC~50ºC |
| Working Humidity | 10%-90%RH |
| | | | |
| Packaging & Delivery | | | |
| Packaging Details:Carton box,Wooden frame/case,flight case |
| Port:FOB Shenzhen |
| | | | |
| Lead Time | | | |
| Quantity(Pieces) | 1月10日 | 11 - 100 | >100 |
| Est. Time(days) | 7 | 15 | To be negotiated |
Supply Ability
Supply Ability: 200+pieces/pcs per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
-
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
-
Video wall projects view
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.
SHENZHEN ANWELL INDUSTRY CO.,LIMITED guarantees the above mentioned products as follows:
LCD panel and Parts: For a period of two (2) years from the date of cargo delivery. Any defective parts includes LCD panel and accessories will be, at this manufacturer's option, replaced or repaired at no cost to the buyer. This products shall be notified in writing, of any defects prior to two (2) years from the date of cargo delivery, at which time the warranty expires.
Free LCD monitor parts and charged LCD panel within warranty period.
The above warranty does not cover additional owner instruction, set-up or adjustment. Likewise, this warranty does cover normal wear and tear, cosmetic damage or damage caused by acts of nature, accidents, negligence, misuse, abuse or lack of routine maintenance, or modification to any part of the system, by anyone other than SHENZHEN ANWELL INDUSTRY CO.,LIMITED.
